Ointment Section
Leading Manufacturers, Exporters, Wholesaler and Trader of Ointment Manufacturing Plant, Vacuum Pump, Jacketed Tank With Agitator, Raw Material Storage Tank, Filter Press and Mixing Vessel from Navi Mumbai.
| Business Type | Manufacturer, Exporter, Trader |
| Vacuum Pump | Oil-sealed rotary vane, 1 to 5 HP, suitable for vacuum deaeration |
| Main Mixing Vessel | SS316L, Jacketed with stirrer & bottom homogenizer, CIP/SIP ready |
| Pre-Mix Vessel | SS316L, Jacketed, with anchor agitator |
| Wax/Water Phase Vessel | Independent phase vessels with heating and agitation |
| Homogenizer/Emulsifier | Bottom/Inline entry, rotor-stator type, up to 3000 RPM |
| Transfer Pump | Lobe / Peristaltic / Gear, SS316L, with sanitary fittings |
| Filter Press | Zero Hold Up design, 8” to 18” plates, SS316L frame |
| Raw Material Storage | SS316L tanks, 50 to 1000 L, with closed lid, optional load cell |
| Control Panel | PLC with HMI touchscreen, recipe programming (optional SCADA) |
Overview
The Ointment Manufacturing Plant from Priyal Propack is a fully automated, GMP-compliant system designed to manufacture a wide range of semi-solid products such as ointments, creams, gels, and lotions. This system includes jacketed process vessels, high-shear emulsifiers, vacuum pumps, transfer pumps, and filter units—all engineered to produce high-quality emulsions with uniform texture and consistency.
Available in capacities from 50 Litre to 2000 Litre, our plants are designed to meet both small and high-volume production needs.
Key Features & Pharma Benefits
-
Vacuum-assisted deaeration for smooth, bubble-free product
-
Triple-walled jacketed vessels for controlled heating/cooling
-
SS316L contact parts with sanitary welds and mirror finish
-
High-speed emulsifier ensures uniform mixing and particle size
-
Modular skid-mounted design for ease of installation
-
CIP & SIP compliant – designed for cleanroom use
-
Suitable for creams, ointments, gels, pastes, and cosmetic emulsions
-
Integrated control system with optional SCADA for batch tracking
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Driven Type | Electric |
| Operating Type | Automatic |
| Shape | Rectangular |
| Type | Oil-lubricated Or Water-ring Type |
| Application | Efficient Deaeration For Clean, Bubble-free Pharma Batches. Suitable For Semi-solids And Liquid Formulations. |
| Key Features | Built-in Moisture Separator, Compact, Noise-free Operation |
Efficient Deaeration for Clean, Bubble-Free Pharma Batches
Key Features
Oil-lubricated or water-ring type for consistent vacuum
Suitable for semi-solids and liquid formulations
Built-in moisture separator
Compact, noise-free operation
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | India |
| Type | Tank |
| Material | Stainless Steel |
| Color | Metallic |
| Feature | Heating,Cooling,Uniform Mixing,GMP-grade Finish,Sanitary Fittings,Pressure/vacuum Rated (on Request),Variable Speed Agitator (optional) |
| Application | Thermal And Mechanical Processing |

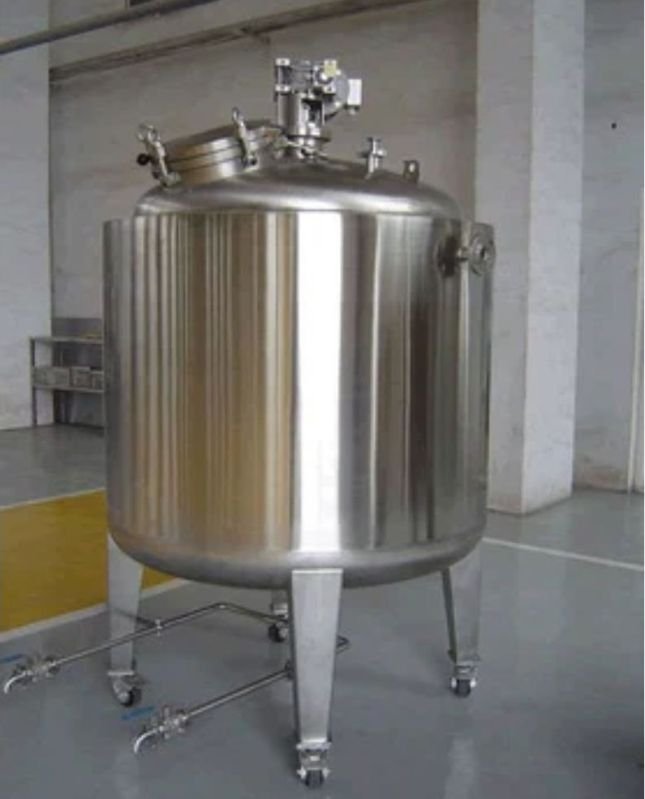

Engineered Tanks for Precise Thermal and Mechanical Processing
Key Features
For heating, cooling, and uniform mixing
GMP-grade finish with sanitary fittings
Pressure/vacuum rated on request
Variable speed agitator optional
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Surface Finishing | Coated |
| Country of Origin | India |
| Number Of Flower | Storage Tank |
| Material | Stainless Steel |
| Packaging Type | Metallic |
| Application | Storage Of API & Bulk Liquids |
| Key Features | Dust-free Loading,Level Indicator Provision,Available With Spray Ball For CIP,Flameproof Motor Options For Agitator Models |

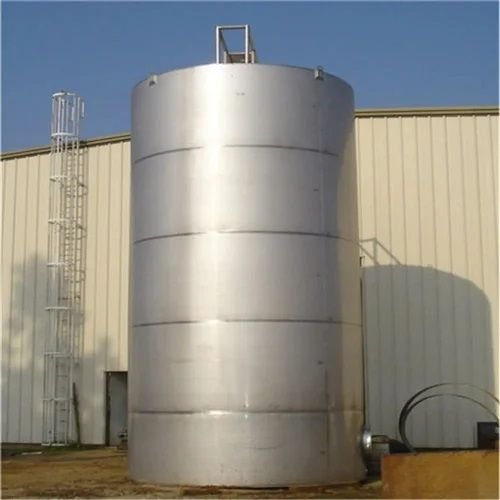

Safe & Sanitary Storage for API & Bulk Liquids
Key Features
Dust-free loading & level indicator provision
Available with spray ball for CIP
Flameproof motor options for agitator models

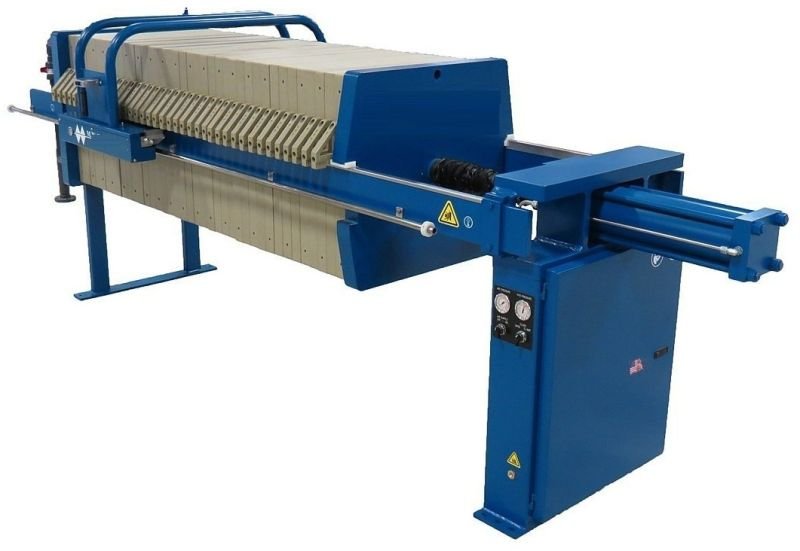

| Business Type | Manufacturer, Exporter, Trader |
| Application | Industrial Filtration Process |
| Material | Stainless Steel |
| Packaging | Standard Packaging |
| Size | Various Sizes Available |
| Power Source | Electric |
| Business Type | Manufacturer, Exporter, Trader |
| Application | Mixing Creams,Gels,Semi-solid Pharma Forms |
| Color | Silver |
| Material | Stainless Steel |
| Type | Mixing Vessel |
| Country of Origin | India |
| Key Features | Suitable For Hot/cold Mixing, GMP Welds, CIP Friendly, Designed For Ointment, Cream & Lotion Bases |

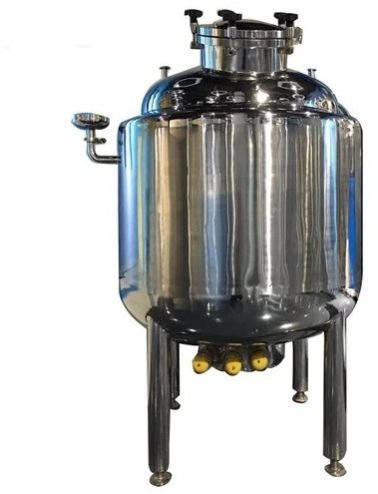

Uniform Mixing for Creams, Gels & Semi-Solid Pharma Forms
Key Features
-
Suitable for hot/cold mixing
-
GMP welds, CIP friendly
-
Designed for ointment, cream & lotion bases
