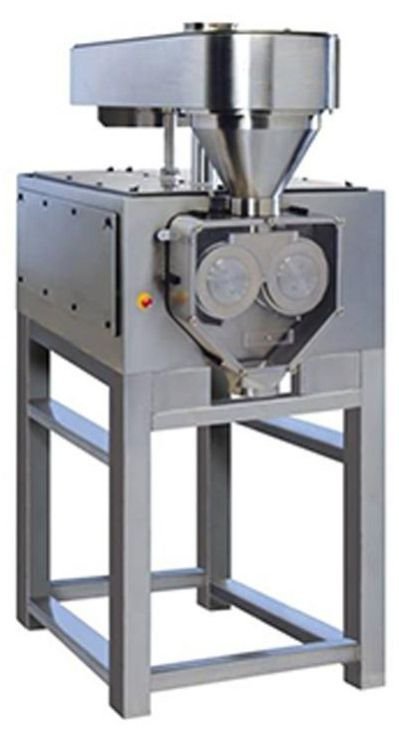

Roll Compactor Machine

Product Description

• Priyal Propack’s  Roll Compactor is a dry granulation machine used in the pharmaceutical industry to convert fine powders into uniform, compacted granules without the use of liquid binders or solvents. This process is ideal for moisture- or heat-sensitive materials, ensuring product integrity while enhancing flowability, compressibility, and uniformity in tablet production.

Key Information:

• Production Capacity (kg/hr): Estimated based on material bulk density of 0.5-0.75 g/cm³ and compressibility. Actual output depends on material properties (e.g., particle size, moisture content).
• Roll RPM Range: Adjustable via variable frequency drive (VFD) for precise control of compaction pressure and granule size.
• Feed Screw Motor Power (HP): Drives the feed screw to ensure uniform material flow to the rolls; typically, 3-phase, 440V, 50 Hz.
• Roll Drive Motor Power (HP): Powers the compaction rolls; flame-proof motor options available for safety.
• Material of Construction: GMP-compliant, with SS 316L for contact parts and SS 304 for non-contact parts.

Operational Features:

• Compaction Pressure: Adjustable hydraulic system (4-12 tons) for consistent granule density.
• Roll Cooling: Water-cooled rolls to manage heat generation during compaction.
• Granulation: Integrated granulator with 1-4 mm mesh for uniform granule sizing.
• Applications: Designed for dry granulation of pharmaceutical powders to enhance flowability and compressibility for tablet manufacturing.
• Compliance and Safety: Adheres to cGMP standards, CE-certified, with dust-tight seals and safety interlocks.
• Customization Options: Available with inline vacuum deaeration, PLC-based controls, and roll surface variations (smooth, corrugated).
• Values are indicative and may vary by manufacturer. Contact the supplier for exact specifications and tailored configurations.
• Explore our full range of pharmaceutical machinery and experience the Priyal Propack advantage.
